Introduction of Fullows semi conductor valves
Fullows 210 series two piece type - SBV210 series
- Compact design
- Tight and smooth, low torque and easy operation
- Butterfly and lever handle available
- Variety of end connection
- Each and every valve is tested at the factory
Specifications
Pressure rating:1000psig (69bar)@70℉ (21℃)
Body material: 316 stainless steel and Brass
Port connections: 1/4’’ to 1’’ and 6mm to 16mm
Orifice: 5.00mm to 16.0mm
Fullows 360 series three piece high-pressure type - SBVH360 series
- Compact design
-High flow rate with maximum orifice
- Variety of end connection
- Anti blow-out stem design
- Each and every valve is tested at the factory
- Fire safety design available
Specifications
Pressure rating: 6000psig (414bar)@70℉(21℃)
Temperature rating: -22 to 265℉ (-30 to 130℃ with PVDF seat
Body material: 316 stainless steel and brass
Fullows 120 series one piece type -SBV 120H series
- Simple design with one piece body
- Tight and smooth, low torque and easy operation
- One-piece ball stem
- Panel mountable
- Variety of end connections
- Straight, angle and 3-way flow patterns
- Each and every valve is tested at the factory
Specifications
Pressure rating: 3000psig (206bar)@70℉ (21 ℃)
Temperature rating: 50 to 150 ℉ (10 to 65℃) with PTFE seat and seating
Body material: 316 stainless steel and Brass
Port connections： 1/16‘’ to 3/4’’ and 3mm to 12mm
Orifice: 0.052’’ and 0.406’’ (1.3mm to 10.3mm)

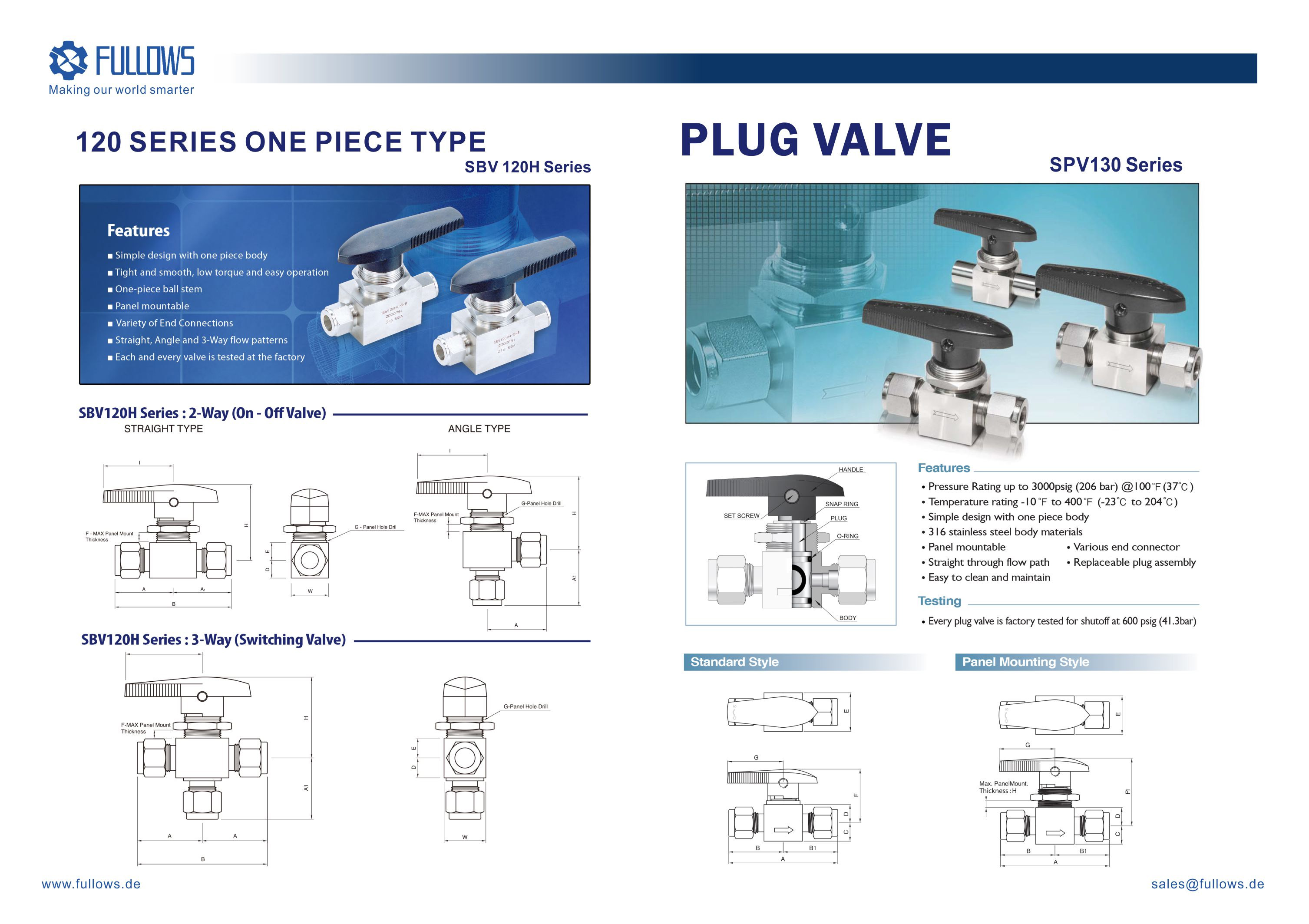

Fullows Plug valve-SPV130 series
- Pressure rating up to 3000psig (206 bar)@ 100℉ （37℃）
- Temperature rating -10℉ to 400 ℉ (-23℃ to 204 ℃)
- Simple design with one piece body
- 316 stainless steel body materials
- Panel mountable
- Various end connector
- Straight through flow path
- Replaceble plug assembly
- Easy to clean and maintain
- Every plug valve is factory tested for shutoff at 600 psig (41.3bar)
Fullows 120 series one piece type - SBV 120H series
- Simple design with one piece body
- Tight and smooth, low torque and easy operation
- One-piece ball stem
- Panel mountable
- Variety of end connections
- Straight, angle and 3-way flow patterns
- Each and every valve is tested at the factory
- Each valve is tested with nitrogen at 1000psig (69bar) to maximum allowable leak rate of 0.1 SCCM.
- Valves are adjusted for factory testing at 1000psig (69bar).
- Packing must be readjusted for service at higher pressures.
Specifications
Pressure rating: 3000psig (206bar)@70℉ (21℃)
Temperature rating: 50 to 150℉(10 to 65℃) with PTFE seat and packing
Body material: 316 stainless steel and brass
Port connections: 1/16’’ to 3/4’’ and 3mm to 12mm
Orifice: 0.052’’ and 0.406’’ (1.3mm to 10.3mm)
210 series two piece type - SBV210 series
- Compact design
- Tight and smooth, low torque and easy operation
- Butterfly and lever handle available
- Variety of end connections
- Each and every valve is tested at the factory
Specifications
Pressure rating: 1000psig (69bar) @ 70℉(21℃)
Body material: 316 stainless steel and brass
Port connections: 1/4’’ to 1’’ and 6mm to 16mm
Orifice: 5.0mm to 16.0mm
360 series three piece high-performance type - SBVH360 series
- Compact design
- High flow rate with maximum orifice
- Variety of end connections
- Anti blow-out stem design
- Each and every valve is tested at the factory
- Fire safety design available
- Each valve is tested with nitrogen at 1000psig(69bar) to maximum allowable leak rate of 0.1 SCCM.
- Hydrostatic shell test is porformed at 1.5 times of the working pressure. (OPTION)
Specifications
Pressure rating: 6000psig (414bar) @ 70℉(21℃)
Temperature rating: -22 to 265℉ (-30 to 130℃) with PVDF seat
-65 to 500℉ (-54 to 260℃) with PEEK seat
Body material: 316 stainless steel and brass
Port connections: 1/4’’ to 1’’ and 6mm to 25mm
Orifice: 10.0mm to 19.0mm
