Fullows HVAC Butterfly Valves

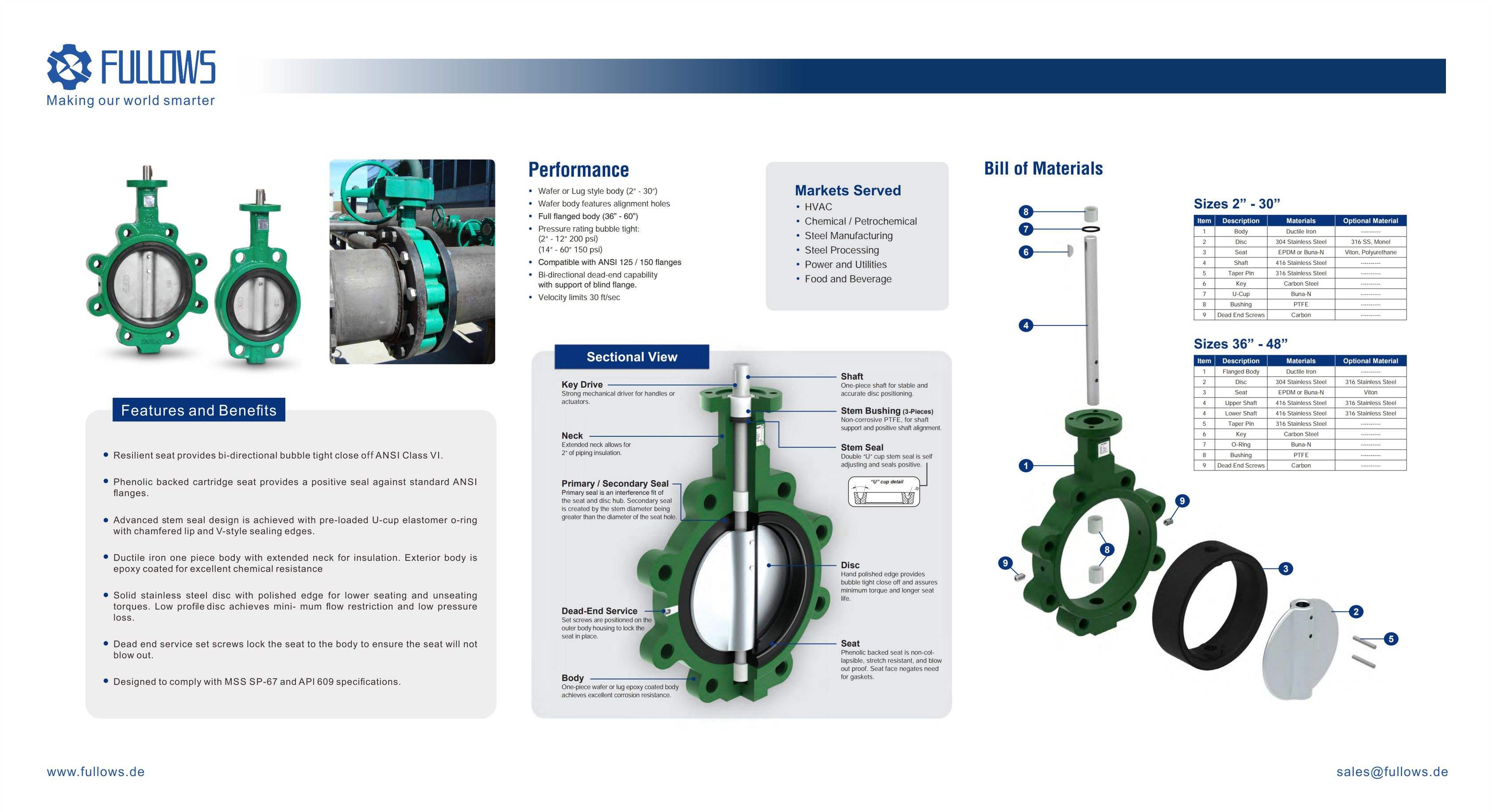

Fullows - Series 500 Butterfly Valves

Resilient seats

EPDM (Peroxide Cured)

Continuous Operating Range -20° to 275℉

EPDM (Ethylene Propylene Diene Monomer) is a hydrocarbon elastomer. It has good resistance to ozone, deionized water, strong and oxidizing chemicals. EPDM is used in a wide range of applications including hot and cold water and low pressure 15# steam.

BUNA-N

Continuous Operating Range +10° to 200℉

Buna-N (Nitrile) elastomers have have tensile strength, low compression set and good resistance to aging. Buna-N is a general service seat with good resistance to water, air, oils, greases, hydraulic fluids and hydrocarbons, Not recommended for gasolines.

Viton® (Dupont)

Continuous Operating Range +0° to 400℉

Viton elastomer has good resistance to acids, oils / aromatic hydrocarbons, and high temperature. Not for Steam service.

Polyurethane

Continuous Operating Range +0° to 176℉

Polyurethane elastomer has good resistance to abrasive materials. Rigid phenolic backed seat will withstand severe impact and recover without tearing.

The Fullows valve body is yellow color to ensure easy identification of poly seated valves.
