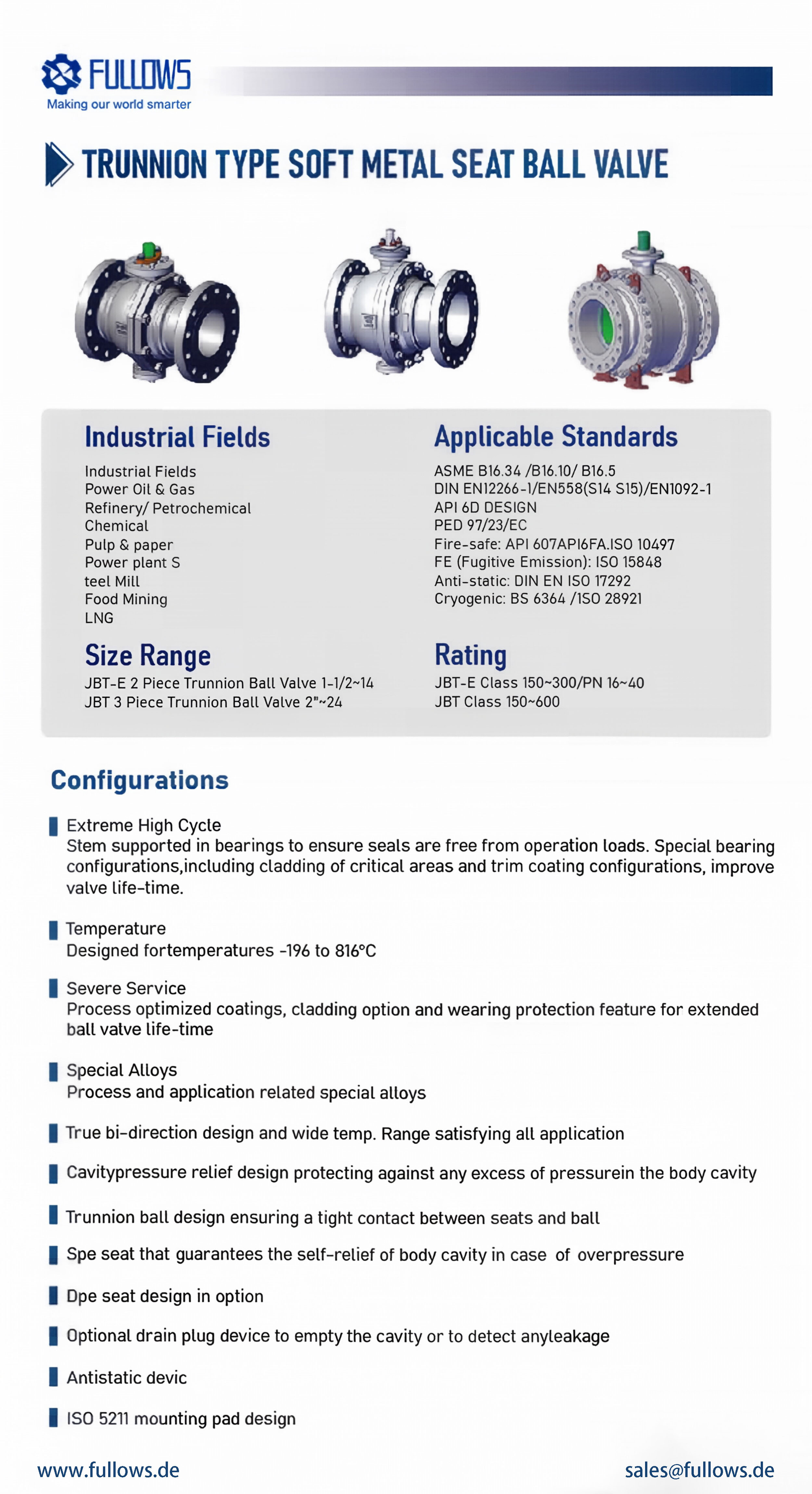

Introduction of Fullows trunnion type soft metal seat ball valve
Industrial fields
power oil & gas
refinery / petrochemical
chemical
pulp & paper
power plant
steel mill
food
mining
LNG
Applicable standards
ASME B16.34 / B16.10 B16.5
DIN EN 12266-1 / EN 58(S14 S15) / EN1092-1
API 6D DESIGN
PED 97/23/EC
fire-safe: API 607, API16FA, ISO 10497
FE (Fugitive Emission): ISO 15848
Anti-static: DIN EN ISO 17292
cryogenic:BS 6364 /ISO 28921
Size range
FWL-E 2 piece trunnion ball valve 1-1/2\'\'~14\'\'
FWL 3 piece trunnion ball valve 2\'\'~24\'\'
Rating
FWL-E class 150~300 / PN 16~40
FWL class 150~600
Configurations
- Extreme high cycle
Stem supported in bearings to ensure seals are free fromoperation loads.Special bearing configurations, includingcladding of critical areas and trim coating configurations.improve valve life-time.
- Temperature
Designed for temperatures -196 to 816°C
-Severe Service
Process optimized coatings, cladding option and wearingprotection feature for extended ball valve life-time.
-Special Alloys
Process and application related special alloys
-True bi-direction design and wide temp. Range satisfying all application
-Cavity pressure relief design protecting against any excess of pressurein the body cavity
-Trunnion ball design ensuring a tight contact between seats and ball
-Spe seat that guarantees the self-relief of body cavity in case of ovepressure
-Dpe seat design in option
-Optional drain plug device to empty the cavity or to detect any leakage
-Antistatic device
-ISO 5211 mounting pad design
